Basic Info.
Model NO.

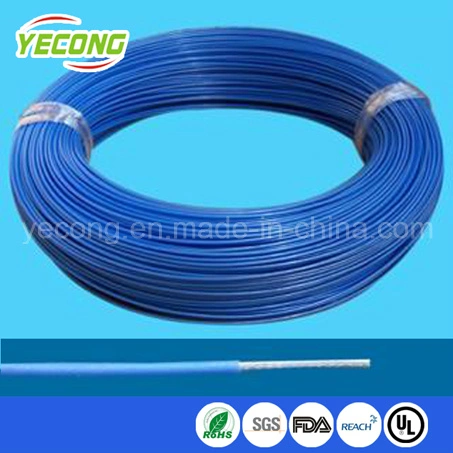

HIGH Temperature PTFE wire cable
Type
Conductor Type
Application
Overhead, Heating, Electric Products
Conductor Material
Sheath Material
PTFE
Insulation Material
PTFE
Material Shape
Round Wire
Range of Application
Infinite LED/Lamp
Certification
ISO9001, UL
Brand
Yecong
Wire Cables
Nickel Plated Wire Cable
Electric Wire Cables
Teflon Wire Cables
Tefln Wire Cables
Silver Plated Wire
Trademark
yecong
Transport Package
Generally Carton Package
Specification
ROLL
Origin
Foshan, Gd
HS Code
8544449210
Product Description
Rated temperature: -60c to 105(MIL200C) voltage not specified(600volt)
Reference standards: UL758, UL1581 and CSA C22.2, no. 210.2, MIL-W-16878E type E, pass UL vw-1d&CSA FT1 vertical flame test
Uniform inuslation thickness of wire to ensure easystripping and cutting, permit bad+-0.16mm
| AWG | Conductor | Insulation | Max.cond. Resistance 20C.Ω/km | Allowable current reference | Kg/Km | Uint length ft/m. | ||||
| NO. | mm | OD | Thick | OD | ||||||
| 36 | 7 | 0.05 | 0.150 | 0.18 | 0.500 | 997 | 0.5 | 0.52 | 4000/1220 | |
| 34 | 7 | 0.06 | 0.180 | 0.18 | 0.550 | 880 | 0.6 | 0.65 | 4000/1220 | |
| 32 | 7 | 0.08 | 0.240 | 0.20 | 0.640 | 563 | 0.7 | 0.86 | 4000/1220 | |
| 30 | 7 | 0.10 | 0.300 | 0.20 | 0.700 | 361 | 0.8 | 1.22 | 4000/1220 | |
| 28 | 7 | 0.12 | 0.360 | 0.25 | 0.760 | 227 | 1.0 | 1.64 | 4000/1220 | |
| 26 | 7 | 0.16 | 0.480 | 0.25 | 0.980 | 143 | 2.0 | 2.68 | 2000/610 | |
| 24 | 7 | 0.20 | 0.600 | 0.25 | 1.150 | 89.3 | 3.0 | 3.98 | 2000/610 | |
| 24 | 19 | 0.12 | 0.600 | 0.25 | 1.150 | 89.3 | 3.0 | 3.95 | 2000/610 | |
| 22 | 7 | 0.254 | 0.760 | 0.25 | 1.250 | 56.4 | 6.0 | 5.81 | 2000/610 | |
| 22 | 19 | 0.15 | 0.750 | 0.25 | 1.250 | 56.4 | 6.0 | 5.68 | 2000/610 | |
| 20 | 19 | 0.185 | 0.930 | 0.25 | 1.430 | 35.2 | 8.0 | 7.88 | 1000/305 | |
| 18 | 19 | 0.233 | 1.170 | 0.25 | 1.670 | 22.2 | 13 | 11.1 | 1000/305 | |
| 16 | 19 | 0.30 | 1.500 | 0.25 | 1.900 | 14.0 | 18 | 18.3 | 1000/305 | |
| 14 | 19 | 0.37 | 1.850 | 0.30 | 2.450 | 9.50 | 24 | 26.0 | 1000/305 | |
