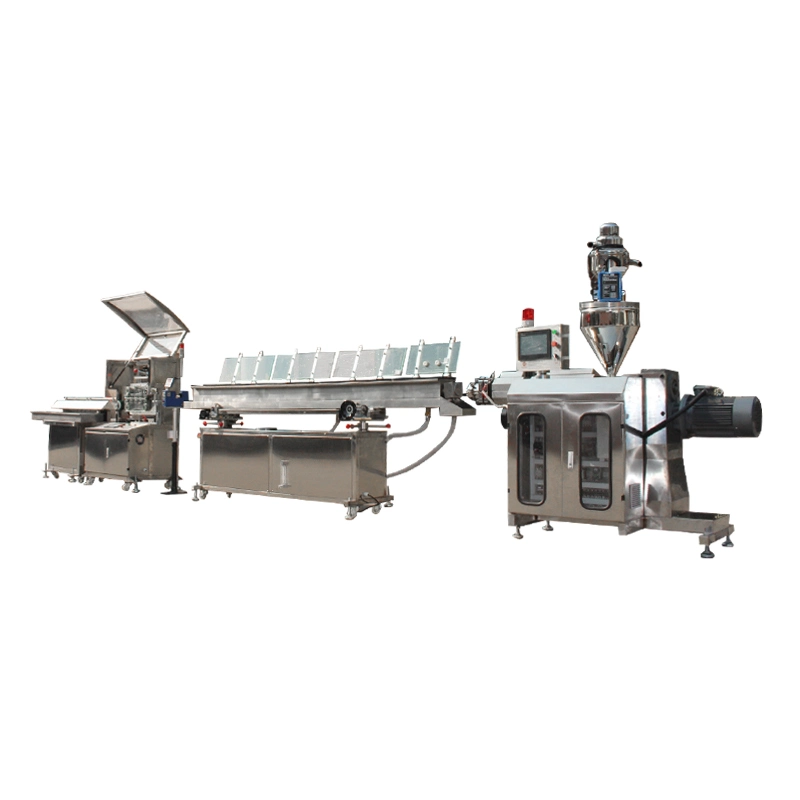

Perfusion tube extrusion line
Model No. | Tube size range (mm) | Screw Size(mm) | Screw L/D | Motor Power(KW) | Production Capacity |
| TS-35 | 1-4mm | 35mm | 25-28mm | 5.5kw | 8-12kg/hr |
| TS-45 | 4-8mm | 45mm | 25-28mm | 7.5/11kw | 15-18kg/hr |
| TS-50 | 8-12mm | 50mm | 25-28mm | 11/15kw | 20-25kg/hr |
1. Application of machine:
Medical tube extrusion line is used for producing various kinds of specification medical catheter like perfusion tube, urethral catheter, central venous catheter, capillary tube, stomach tube ,and multi-hole tube and etc.
2. Detailed description of machine;
Machine frame are complete made of Stainless steel S304.
Core rods and die are made of S136 /3Cr17 mould steel material, which ensures the inner flow surface glossiness and anti-corrosion, structure of moulds adopts high pressure volumetric type", which is initiated by our company, can provide stable and high-speed extrusion for the tube material with tiny fluctuation.
With the new "accurate control of weak vacuum" technology: vacuum and water system controlled separately. In this way, we can coordinate the multilevel water balance control system with vacuum system, ensures stable vacuum degree, cooling water level and water flowing;
Adopt Laser online gauge diameter measurement system for measuring diameter on line, measuring precision can get to ±0.03MM.
The haul-off unit adopts SIEMENS or MITSUBISHI servo motor which guarantee very accurate size.
3. Configuration of machine
a. TS-35 single screw extruder: one set
b. S136 die head:one set

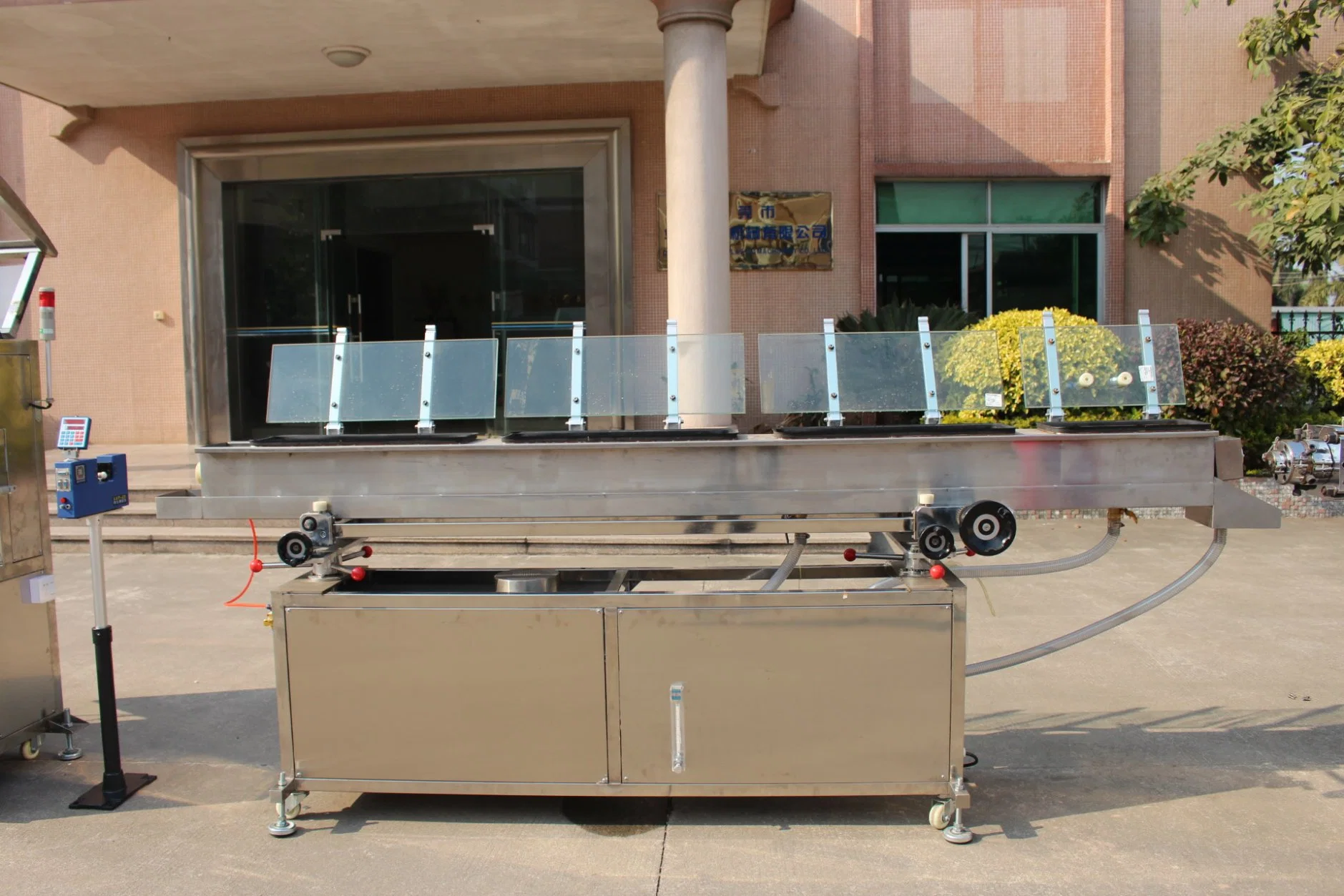

c. S304 vacuum calibration tank: one set
d. Laser gauge :one set
e. servo haul-off unit : one set
f. Dual-shaft winding unit: one set
The machine will be wrapped with film before loading, some parts will be packed with wooden case. and then fix it with steel with inside of container. it guarantee no damage during sea transportation.
