Product Description

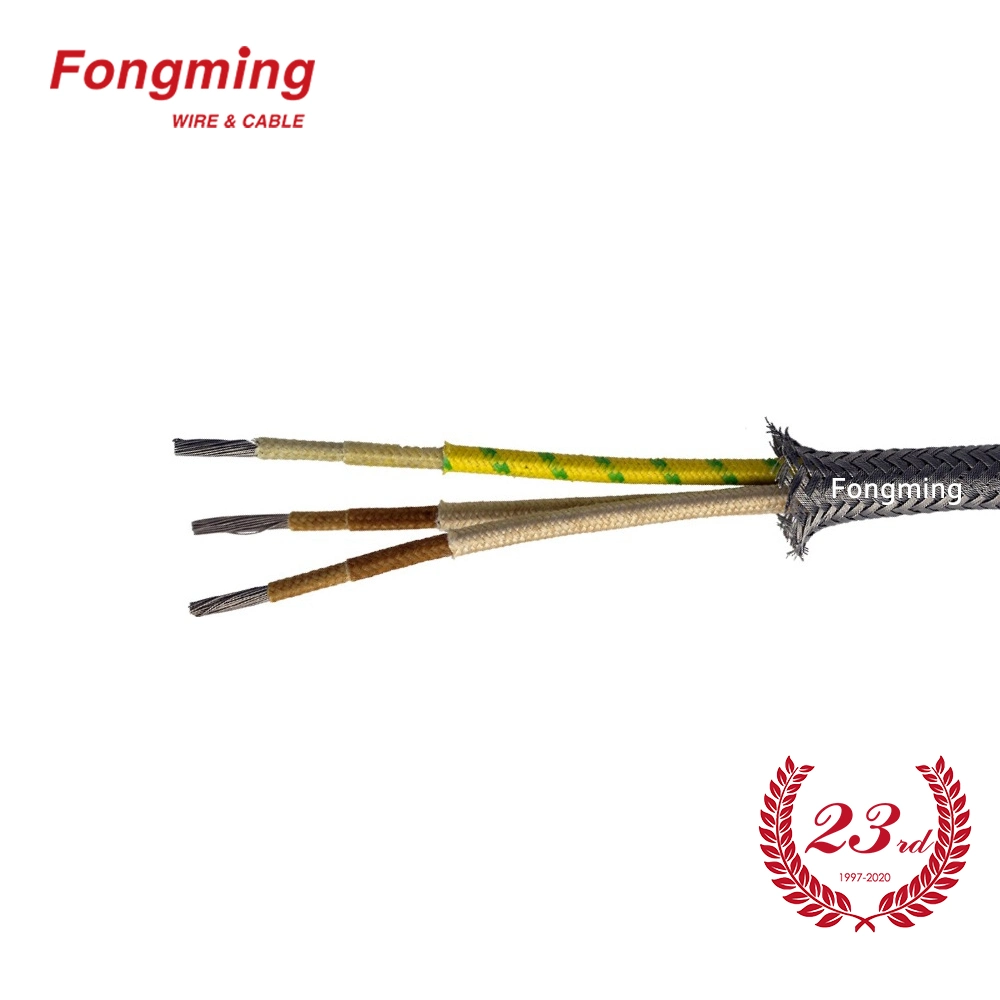

250C TGGT PTFE Tape Wrapping Shield Cable
Description
Name: 250C TGGT PTFE Tape Wrapping Shield Cable
Model: TGGT03-P, TGGT27-P
Size: 2*26~5*14AWG
Feature
Ratings Voltage: 300V
Rated Temperature: 250C
Structure
Conductor: 3% or 27% Nickel Plated Copper
Insulation: PTFE Tape with Silicone Resin Coating
Braid: Fiberglass Braid Silicone Resin Coating
Jacket: Fiberglass Braid Silicone Resin Coating
Shield: Stainless Steel
Certifications
Company Information
Packaging&Shipping
FAQ
250C TGGT PTFE Tape Wrapping Shield Cable
Description
Name: 250C TGGT PTFE Tape Wrapping Shield Cable
Model: TGGT03-P, TGGT27-P
Size: 2*26~5*14AWG
Feature
Ratings Voltage: 300V
Rated Temperature: 250C
Structure
Conductor: 3% or 27% Nickel Plated Copper
Insulation: PTFE Tape with Silicone Resin Coating
Braid: Fiberglass Braid Silicone Resin Coating
Jacket: Fiberglass Braid Silicone Resin Coating
Shield: Stainless Steel
| Cores | Size AWG | Conductor Structure | Diameter (mm) | PTFE Thickness (mm) | Diameter (mm) | Fiberglass Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | OD (mm) |
| 2 | 26 | 7/0.16 | 0.48 | 0.1 | 0.68 | 0.2 | 1.08 | 0.2 | 1.5 | 0.2 | 3.4 | 0.2 | 3.6±0.3 |
| 3 | 0.2 | 3.6 | 0.2 | 3.8±0.3 | |||||||||
| 4 | 0.2 | 4.0 | 0.2 | 4.2±0.3 | |||||||||
| 5 | 0.2 | 4.5 | 0.2 | 4.7±0.3 | |||||||||
| 2 | 24 | 7/0.2 | 0.60 | 0.1 | 0.8 | 0.2 | 1.2 | 0.2 | 1.6 | 0.2 | 3.6 | 0.2 | 3.8±0.3 |
| 3 | 0.2 | 3.9 | 0.2 | 4.1±0.3 | |||||||||
| 4 | 0.2 | 4.2 | 0.2 | 4.4±0.3 | |||||||||
| 5 | 0.2 | 4.7 | 0.2 | 4.9±0.3 | |||||||||
| 2 | 22 | 7/0.254 | 0.76 | 0.1 | 0.96 | 0.2 | 1.36 | 0.2 | 1.8 | 0.2 | 4.0 | 0.2 | 4.2±0.3 |
| 3 | 0.2 | 4.3 | 0.2 | 4.5±0.3 | |||||||||
| 4 | 0.2 | 4.7 | 0.2 | 4.9±0.3 | |||||||||
| 5 | 0.2 | 5.3 | 0.2 | 5.5±0.3 | |||||||||
| 2 | 20 | 10/0.254 | 0.93 | 0.1 | 1.13 | 0.2 | 1.53 | 0.2 | 1.9 | 0.2 | 4.2 | 0.2 | 4.4±0.3 |
| 3 | 0.2 | 4.5 | 0.2 | 4.7±0.3 | |||||||||
| 4 | 0.2 | 4.9 | 0.2 | 5.1±0.3 | |||||||||
| 5 | 0.2 | 5.5 | 0.2 | 5.7±0.3 | |||||||||
| 2 | 18 | 16/0.254 | 1.17 | 0.1 | 1.37 | 0.2 | 1.77 | 0.2 | 2.2 | 0.2 | 4.8 | 0.2 | 5.0±0.3 |
| 3 | 0.2 | 5.1 | 0.2 | 5.3±0.3 | |||||||||
| 4 | 0.2 | 5.7 | 0.2 | 5.9±0.3 | |||||||||
| 5 | 0.2 | 6.3 | 0.2 | 6.5±0.3 | |||||||||
| 2 | 16 | 26/0.254 | 1.50 | 0.2 | 1.9 | 0.2 | 2.3 | 0.2 | 2.7 | 0.2 | 5.8 | 0.2 | 6.0±0.3 |
| 3 | 0.2 | 6.2 | 0.2 | 6.4±0.3 | |||||||||
| 4 | 0.2 | 6.9 | 0.2 | 7.1±0.5 | |||||||||
| 5 | 0.2 | 7.7 | 0.2 | 7.9±0.5 | |||||||||
| 2 | 14 | 41/0.254 | 1.88 | 0.2 | 2.28 | 0.2 | 2.68 | 0.2 | 3.1 | 0.2 | 6.6 | 0.2 | 6.8±0.5 |
| 3 | 0.2 | 7.1 | 0.2 | 7.3±0.5 | |||||||||
| 4 | 0.2 | 7.9 | 0.2 | 8.1±0.5 | |||||||||
| 5 | 0.2 | 8.8 | 0.2 | 9.0±0.5 |
